STITCHED MAT & COMBINED MAT

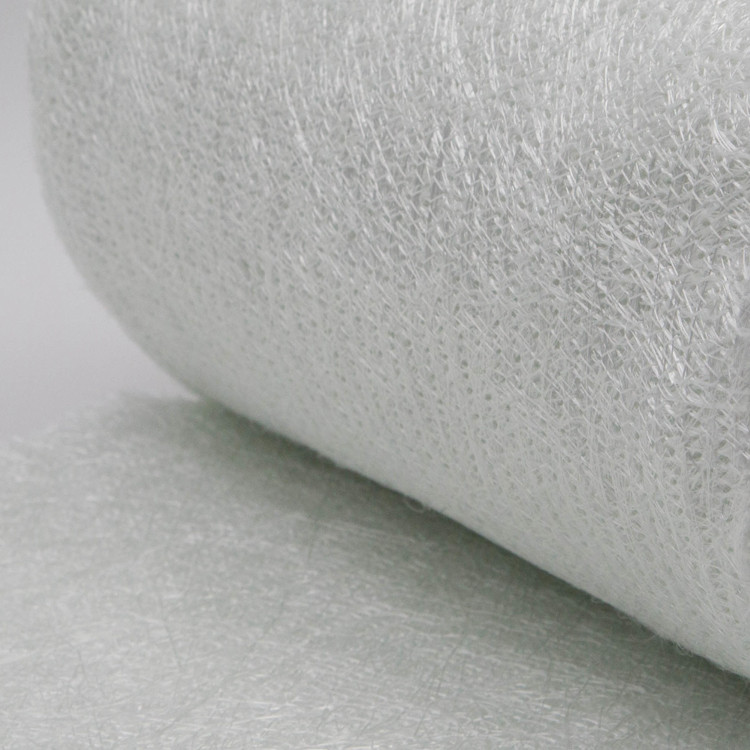

E-glass stitched mat is made from chopped fiberglass strands randomly dispersed and laid on a roving matrix and stitched together with organic fibers. Stitched Mat is used primarily in pultrusion, RTM, filament winding and hand lay-up processes. Typical products include pultruded parts, pipe, storage tanks, wind generator blades and other FRP products.

Moisture content: 0.1%
Coupling Agent: Silane
Compatible Resin: Polyester
Filament Diameter chopped strand: 11-13 µm, roving: 14/17 µm

Compare

Identification of product code

E MK 300 – 1270

	E-glass
	Mat Knitting
	Unit weight, Unit: g/m²
	Width, Unit: mm

Properties:

Even thickness, high wet tensile strength retention, on strand interlocking and low distortion.
Directional properties and strengths equal to woven roving.
Flexibility to design different weaving structures.
Very little material required to achieve maximum tensile strength properties.

Product characteristics:

Product code	Total Unit Weight(g/m²)	Mat Unit Weight(g/m²)	Roving Unit Weight(g/m²)	Width(mm)	Number of Layer	Information(Base)
EMK300	300	300		200-2540	1	No base cloth
EMK380	380	380		200-2540	1	No base cloth
EMK450	450	450		200-2540	1	No base cloth
EMK500	500	500		200-2540	1	No base cloth
EMK900	900	900		200-2540	1	No base cloth
EMK300/300	600	300	300	200-2540	2
EMK300/500	800	300	500	200-2540	2
EMK300/600	900	300	600	200-2540	2
EMK450/580	1030	450	580	200-2540	2
EMK450/600	1050	450	600	200-2540	2
EMK450/800	1250	450	800	200-2540	2

Any special specification, please contact us.
